Session: Tracking Individual Conversations¶

Following our Introduction, let's dive into the Session. Think back to the idea of a "conversation thread." Just like you wouldn't start every text message from scratch, agents need context from the ongoing interaction. Session is the ADK object designed specifically to track and manage these individual conversation threads.

The `Session` Object¶

When a user starts interacting with your agent, the SessionService creates a Session object. This object acts as the container holding everything related to that one specific chat thread. Here are its key properties:

Identification (id, appName, userId): Unique labels for the conversation.
- id: A unique identifier for this specific conversation thread, essential for retrieving it later.
- appName: Identifies which agent application this conversation belongs to.
- userId: Links the conversation to a particular user.
History (events): A chronological sequence of all interactions (Event objects – user messages, agent responses, tool actions) that have occurred within this specific thread.
Session Data (state): A place to store temporary data relevant only to this specific, ongoing conversation. This acts as a scratchpad for the agent during the interaction. We will cover how to use and manage state in detail in the next section.
Activity Tracking (lastUpdateTime): A timestamp indicating the last time an event was added to this conversation thread.

Example: Examining Session Properties¶

import { InMemorySessionService } from './sessions/inMemorySessionService';
import { Session } from './sessions/interfaces';

// Create a simple session to examine its properties
const tempService = new InMemorySessionService();
const exampleSession: Session = tempService.createSession({
    appName: "my_app",
    userId: "example_user",
    state: {"initial_key": "initial_value"} // State can be initialized
});

console.log("--- Examining Session Properties ---");
console.log(`ID (id):                ${exampleSession.id}`);
console.log(`Application Name (appName): ${exampleSession.appName}`);
console.log(`User ID (userId):         ${exampleSession.userId}`);
console.log(`State (state):           ${JSON.stringify(exampleSession.state)}`); // Note: Only shows initial state here
console.log(`Events (events):         ${exampleSession.events.length}`); // Initially empty
console.log("---------------------------------");

// Clean up (optional for this example)
tempService.deleteSession({
    appName: exampleSession.appName,
    userId: exampleSession.userId,
    sessionId: exampleSession.id
});

(Note: The state shown above is only the initial state. State updates happen via events, as discussed in the State section.)

Managing Sessions with a `SessionService`¶

You don't typically create or manage Session objects directly. Instead, you use a SessionService. This service acts as the central manager responsible for the entire lifecycle of your conversation sessions.

Its core responsibilities include:

Starting New Conversations: Creating fresh Session objects when a user begins an interaction.
Resuming Existing Conversations: Retrieving a specific Session (using its ID) so the agent can continue where it left off.
Saving Progress: Appending new interactions (Event objects) to a session's history. This is also the mechanism through which session state gets updated (more in the State section).
Listing Conversations: Finding the active session threads for a particular user and application.
Cleaning Up: Deleting Session objects and their associated data when conversations are finished or no longer needed.

`SessionService` Implementations¶

ADK provides different SessionService implementations, allowing you to choose the storage backend that best suits your needs:

InMemorySessionService
- How it works: Stores all session data directly in the application's memory.
- Persistence: None. All conversation data is lost if the application restarts.
- Requires: Nothing extra.
- Best for: Quick tests, local development, examples, and scenarios where long-term persistence isn't required.
```
import { InMemorySessionService } from './sessions/inMemorySessionService';
const sessionService = new InMemorySessionService();
```
DatabaseSessionService
- How it works: Connects to a relational database (e.g., SQLite) to store session data persistently in tables.
- Persistence: Yes. Data survives application restarts.
- Requires: A configured database connection URL and TypeORM dependencies.
- Best for: Applications needing reliable, persistent storage that you manage yourself.
```
import { DatabaseSessionService } from './sessions/databaseSessionService';

// Example using a local SQLite file:
const dbUrl = "sqlite:///./my_agent_data.db";
const sessionService = new DatabaseSessionService(dbUrl);
```

VertexAiSessionService

How it works: Uses Google Cloud's Vertex AI infrastructure via API calls for session management.
Persistence: Yes. Data is managed reliably and scalably by Google Cloud.
Requires: A Google Cloud project, appropriate permissions, necessary SDKs, and the Reasoning Engine resource name/ID.
Best for: Scalable production applications deployed on Google Cloud, especially when integrating with other Vertex AI features.

import { VertexAiSessionService } from './sessions/vertexAiSessionService';

const PROJECT_ID = "your-gcp-project-id";
const LOCATION = "us-central1";
// The appName used with this service should be the Reasoning Engine ID or name
const REASONING_ENGINE_APP_NAME = "projects/your-gcp-project-id/locations/us-central1/reasoningEngines/your-engine-id";

const sessionService = new VertexAiSessionService({
  project: PROJECT_ID,
  location: LOCATION
});
// Use REASONING_ENGINE_APP_NAME when calling service methods, e.g.:
// sessionService.createSession({ appName: REASONING_ENGINE_APP_NAME, ... })

Choosing the right SessionService is key to defining how your agent's conversation history and temporary data are stored and persist.

The Session Lifecycle¶

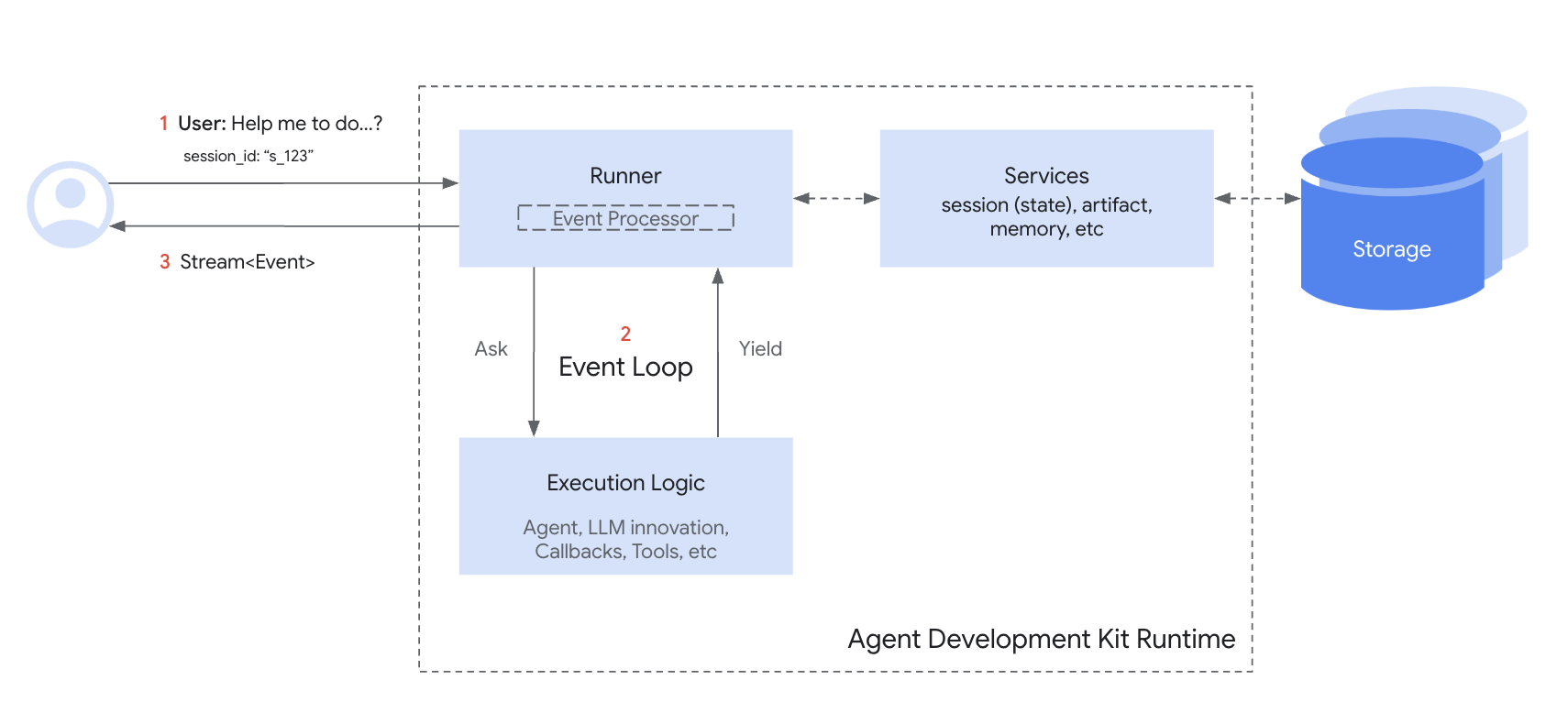

Session lifecycle

Here's a simplified flow of how Session and SessionService work together during a conversation turn:

Start or Resume: A user sends a message. Your application's Runner uses the SessionService to either createSession (for a new chat) or getSession (to retrieve an existing one).
Context Provided: The Runner gets the appropriate Session object from the service, providing the agent with access to its state and events.
Agent Processing: The agent uses the current user message, its instructions, and potentially the session state and events history to decide on a response.
Response & State Update: The agent generates a response (and potentially flags data to be updated in the state). The Runner packages this as an Event.
Save Interaction: The Runner calls sessionService.appendEvent(...) with the Session and the new Event. The service adds the Event to the history and updates the session's state in storage based on information within the event.
Ready for Next: The agent's response goes to the user. The updated Session is now stored by the SessionService, ready for the next turn (which restarts the cycle at step 1, usually with getSession).
End Conversation: When the conversation is over, ideally your application calls sessionService.deleteSession(...) to clean up the stored session data.

This cycle highlights how the SessionService ensures conversational continuity by managing the history and state associated with each Session object.

Session Interface¶

In TypeScript, the Session is defined by the following interface:

interface Session {
  id: string;
  appName: string;
  userId: string;
  state: Record<string, any>;
  events: Event[];
}

All SessionService implementations in the ADK work with this common interface, ensuring consistency across different storage backends.
